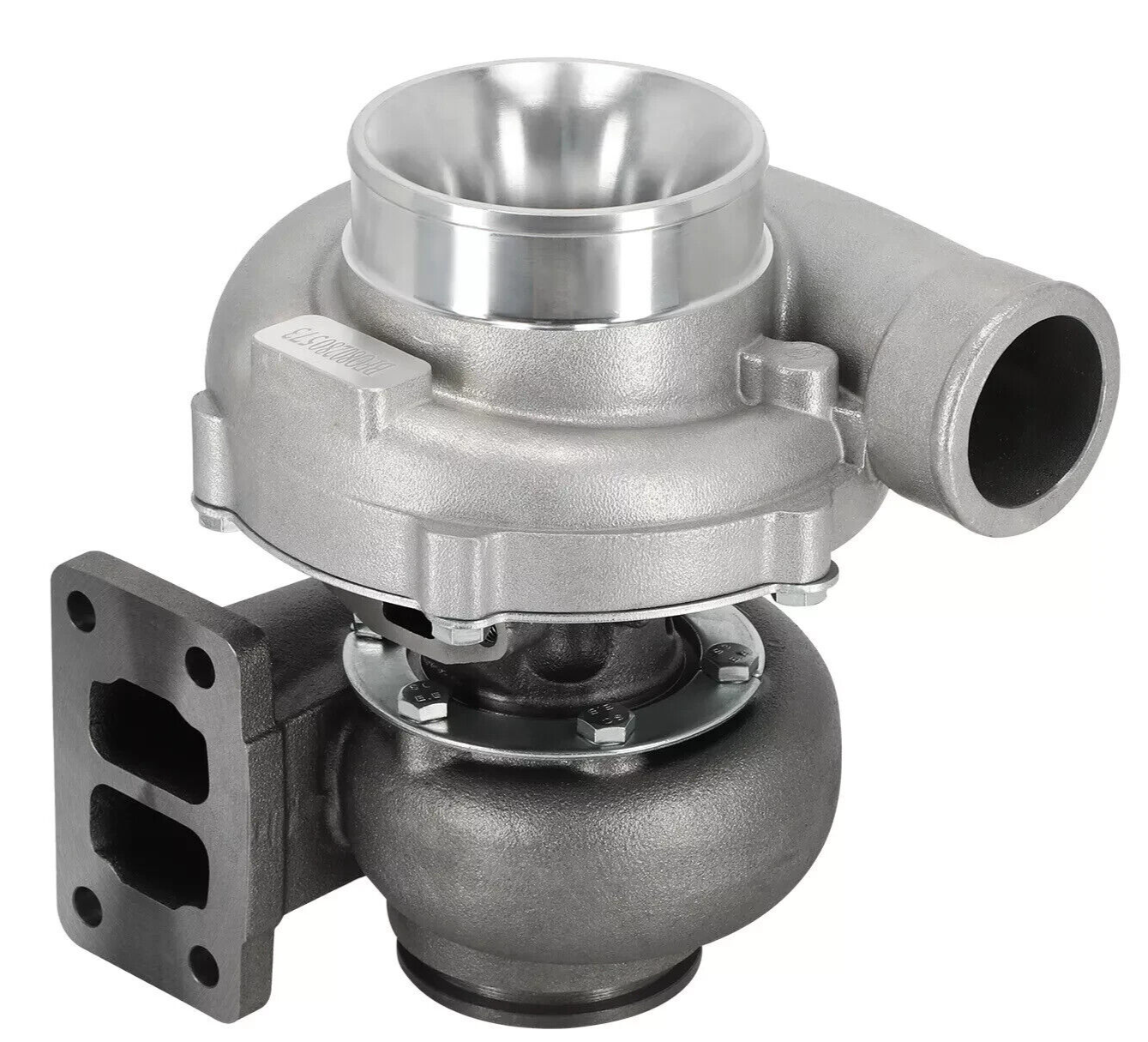

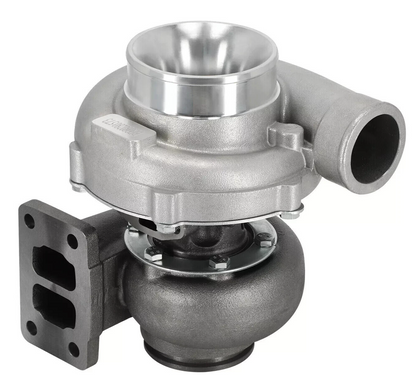

T70 .70 0.82A/R T3 V-Band Flange Oil Cooled Universal turbo charger 500+HP

DESCRIPTION:

Fitment:

Universal for Turbo Manifold with T3 Flange. Perfect for all 2.0L-3.0L engines.

Let us know for direct model fitment help

Compressor Size:

* Trim: 57

* Inducer Diameter: 56.6 mm

* Exducer Diameter: 75 mm

* A/R: 0.82

Turbine Size:

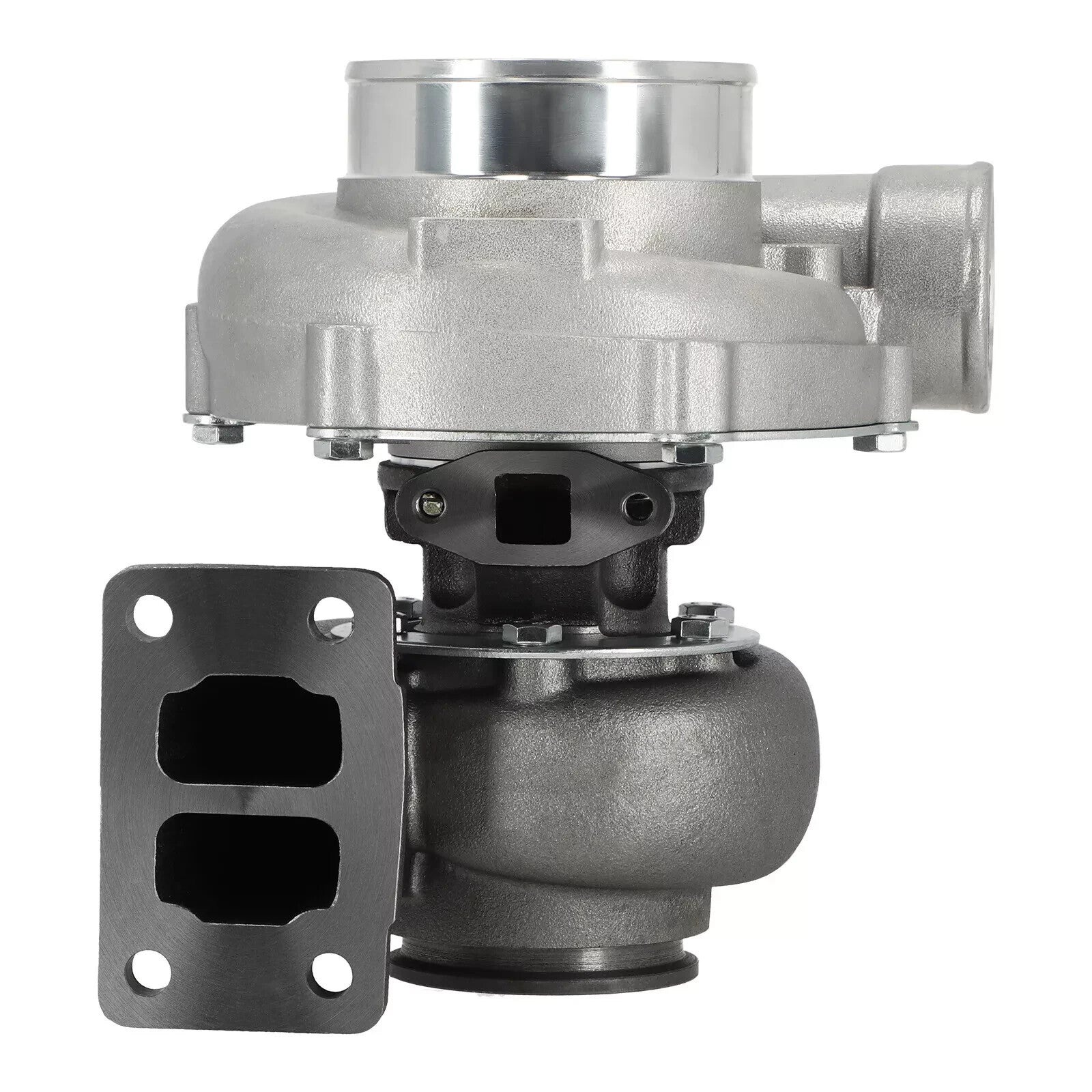

* Exhaust Inlet Flange: T3 Twin Scroll Flange
* Exhaust Outlet Flange: 2.5'' V Band Flange
*Turbine exhaust outlet : 79.8 mm(OD) / 63 mm(ID)
* Trim: 61.6
* Inducer Diameter: 74.4 mm
* Exducer Diameter: 58.4 mm
* A/R: 0.7

Cooling Type: Oil Cooled
Horse Power: up to 500HP
Bearing Type:  Floating Bearing
Thrust Bearing: 270 Degrees
Turbo Type: Twin-Scroll

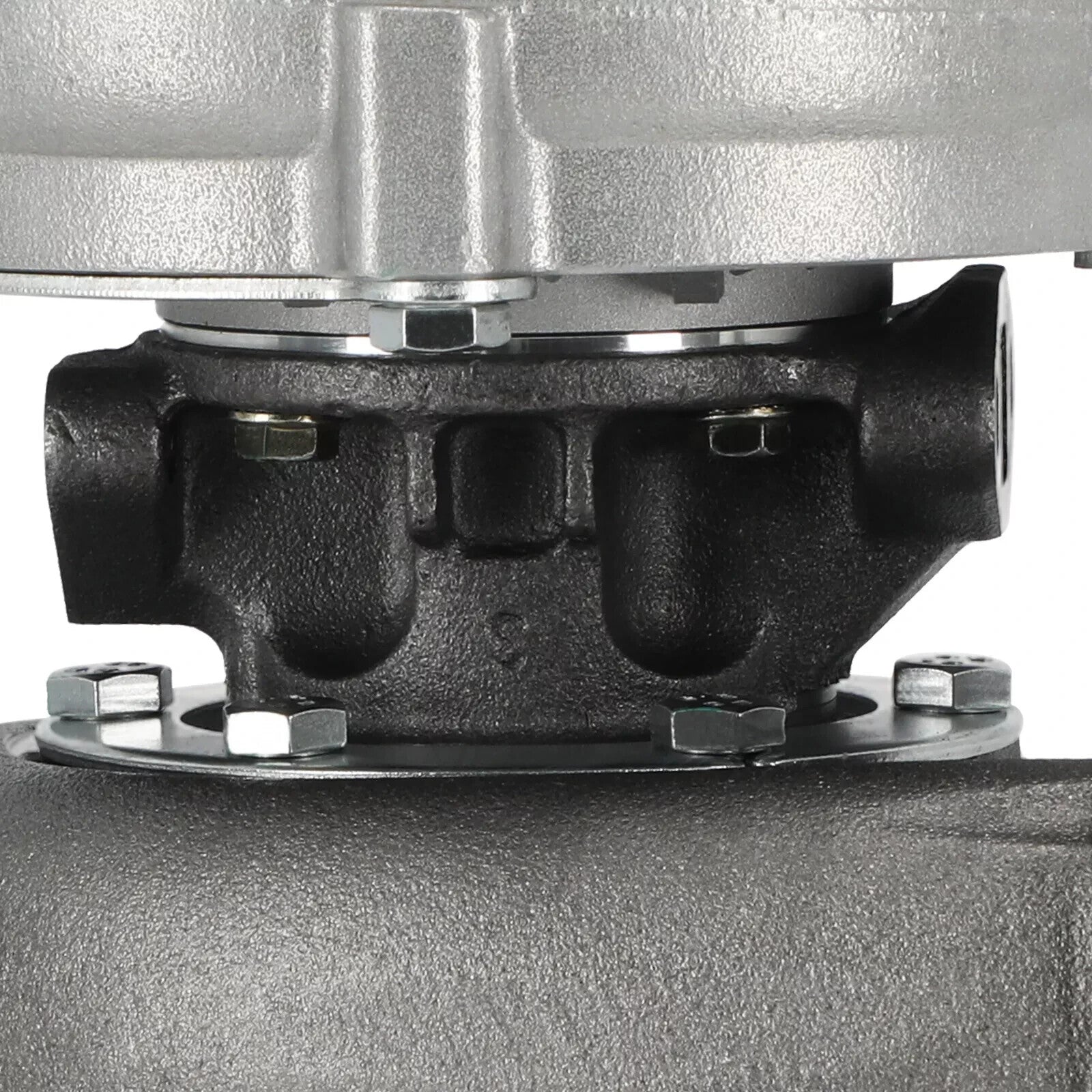

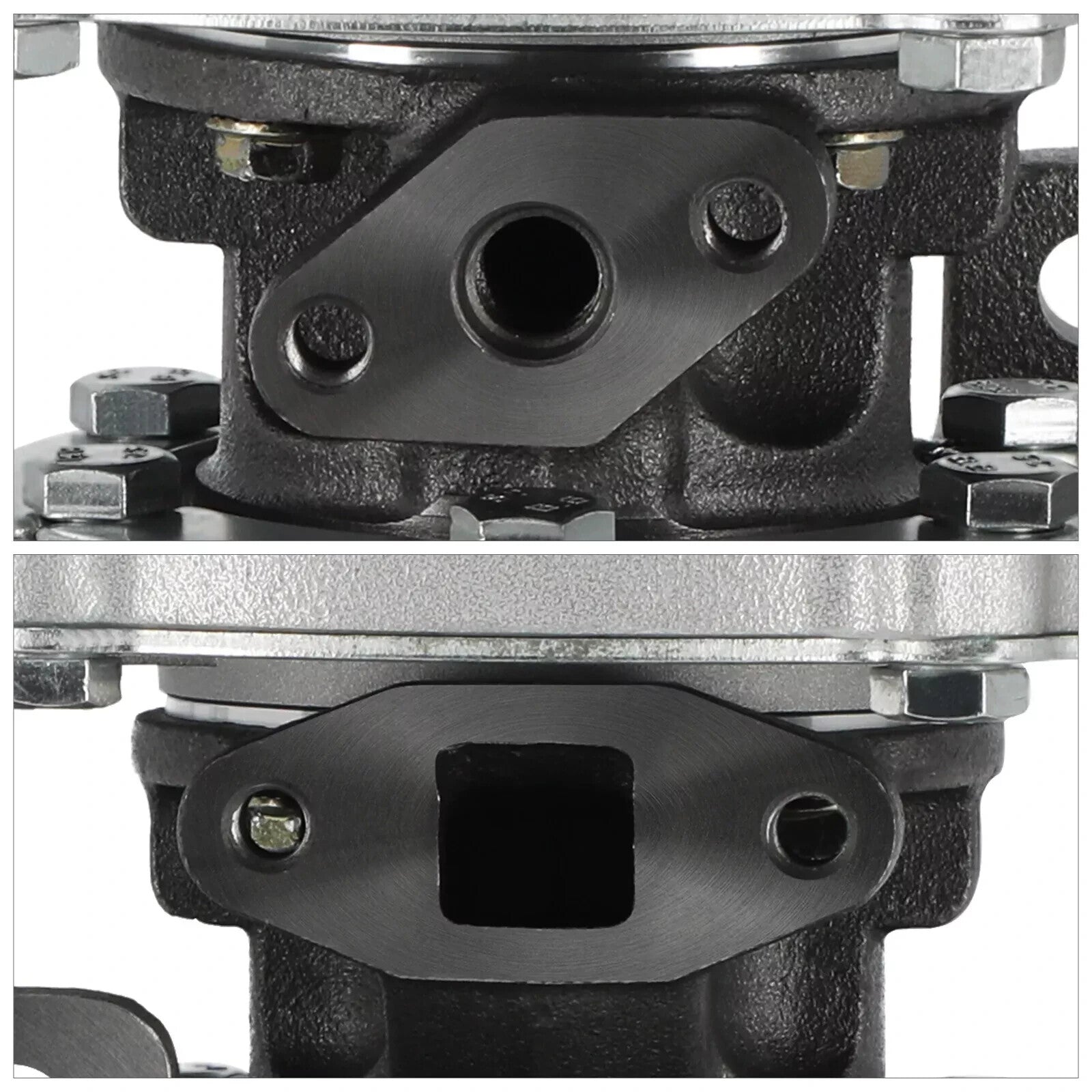

Oil Inlet: M12*1.25 & 2*M8*1.25
Oil Outlet: 2*M8*1.25

Wastegate: W/O Wastegate
Condition: 100% Brand New
Accessories: You will get exactly as shown in the picture above

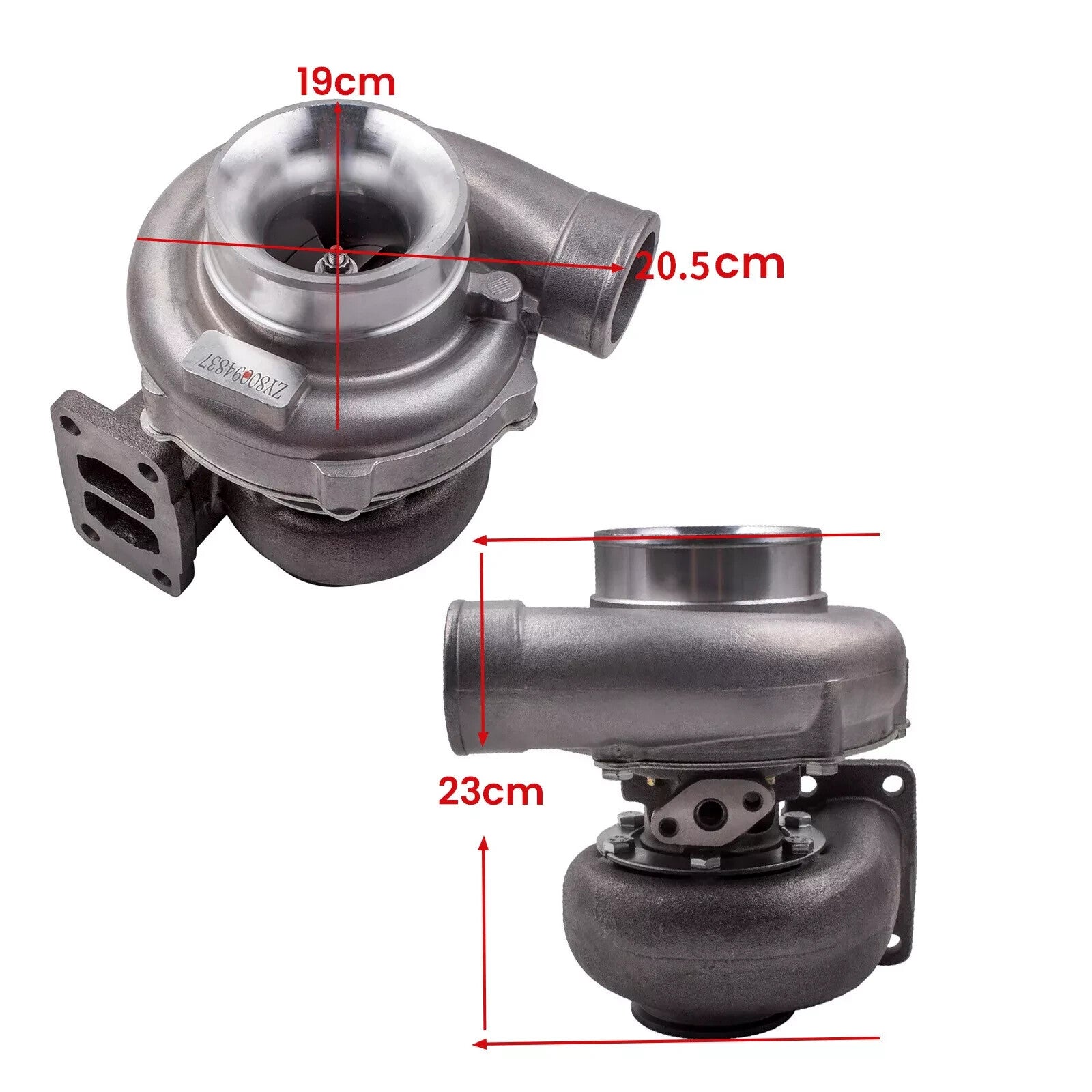

Package Size: 25*24*23cm
Package Weight: 9560g
