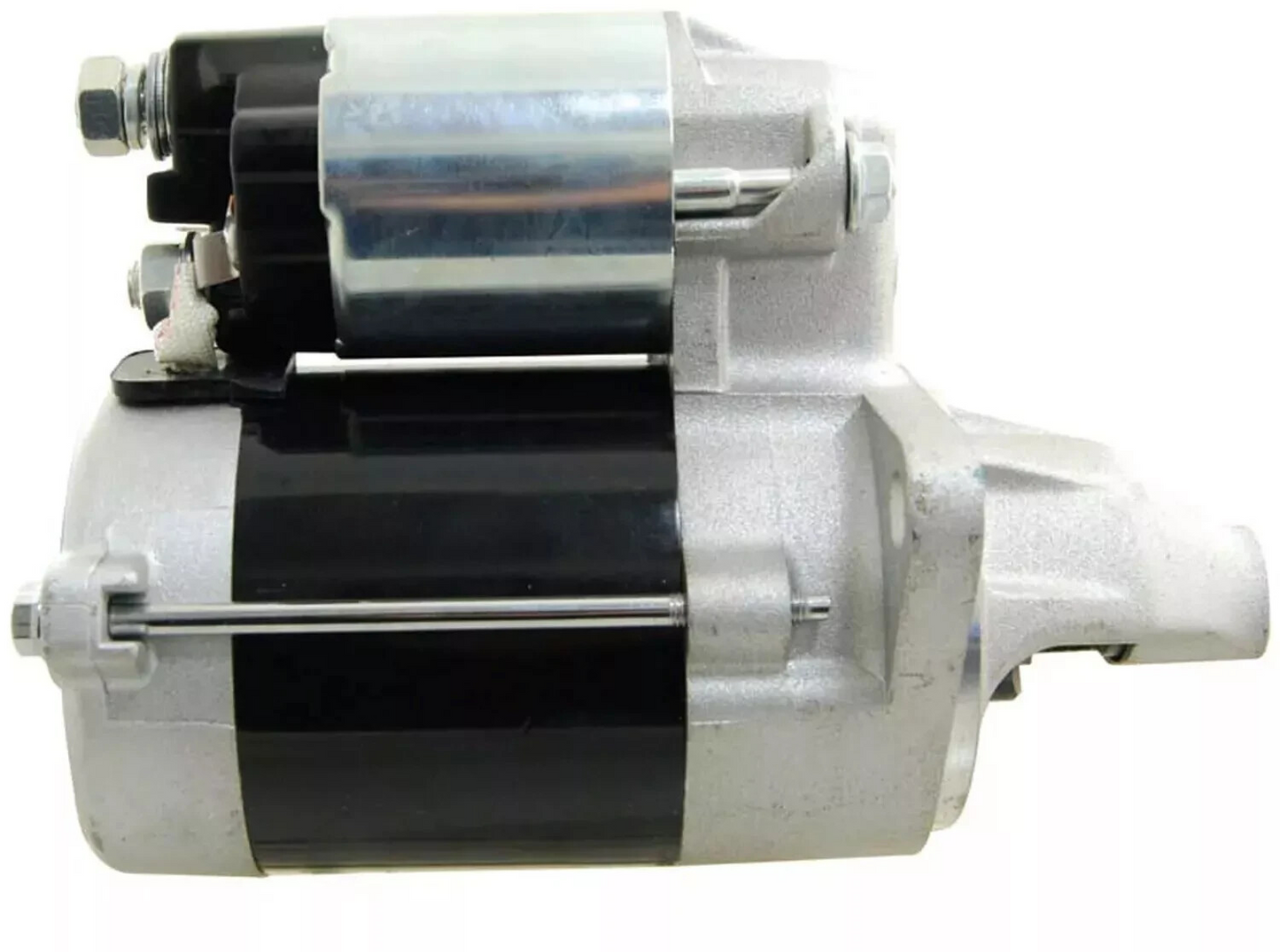

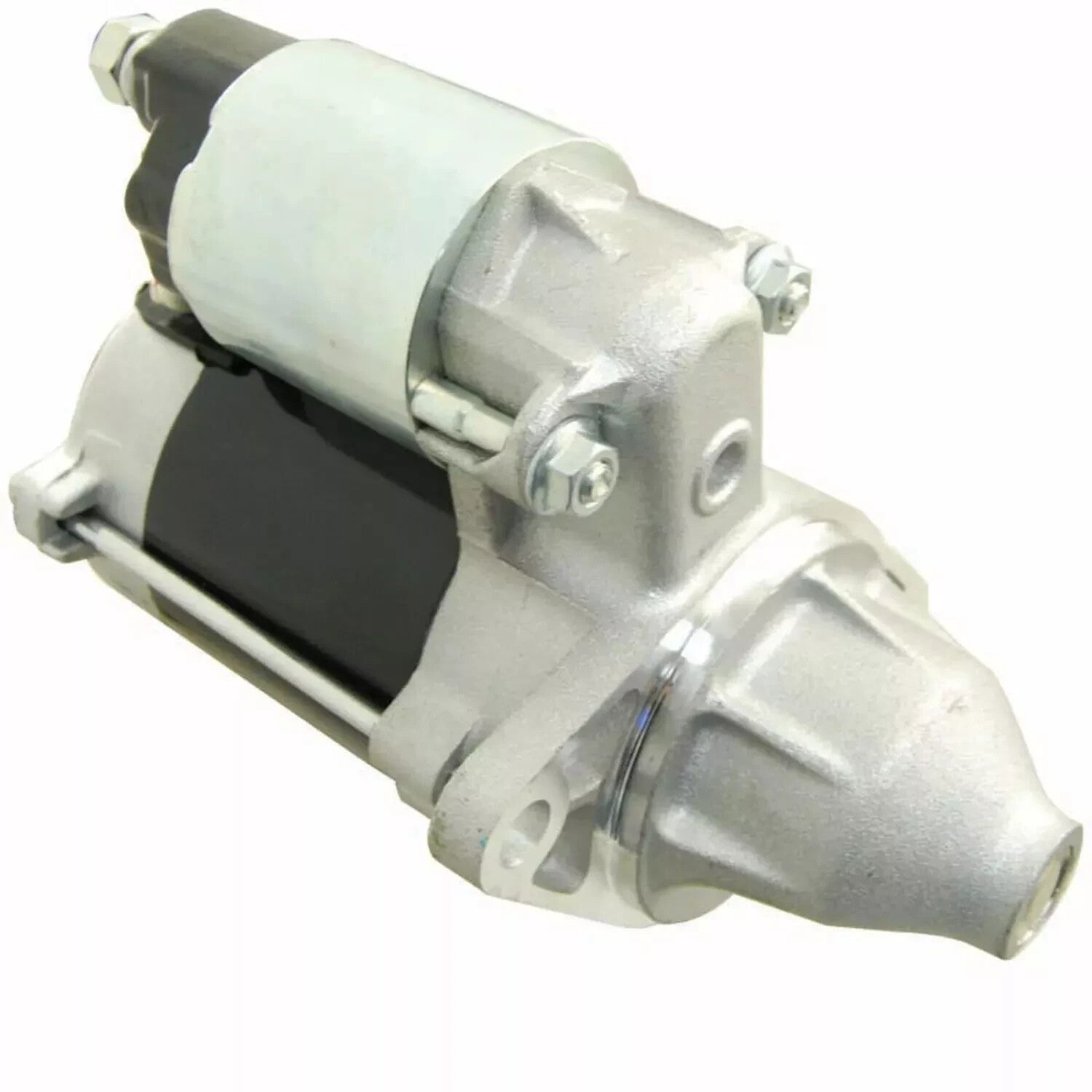

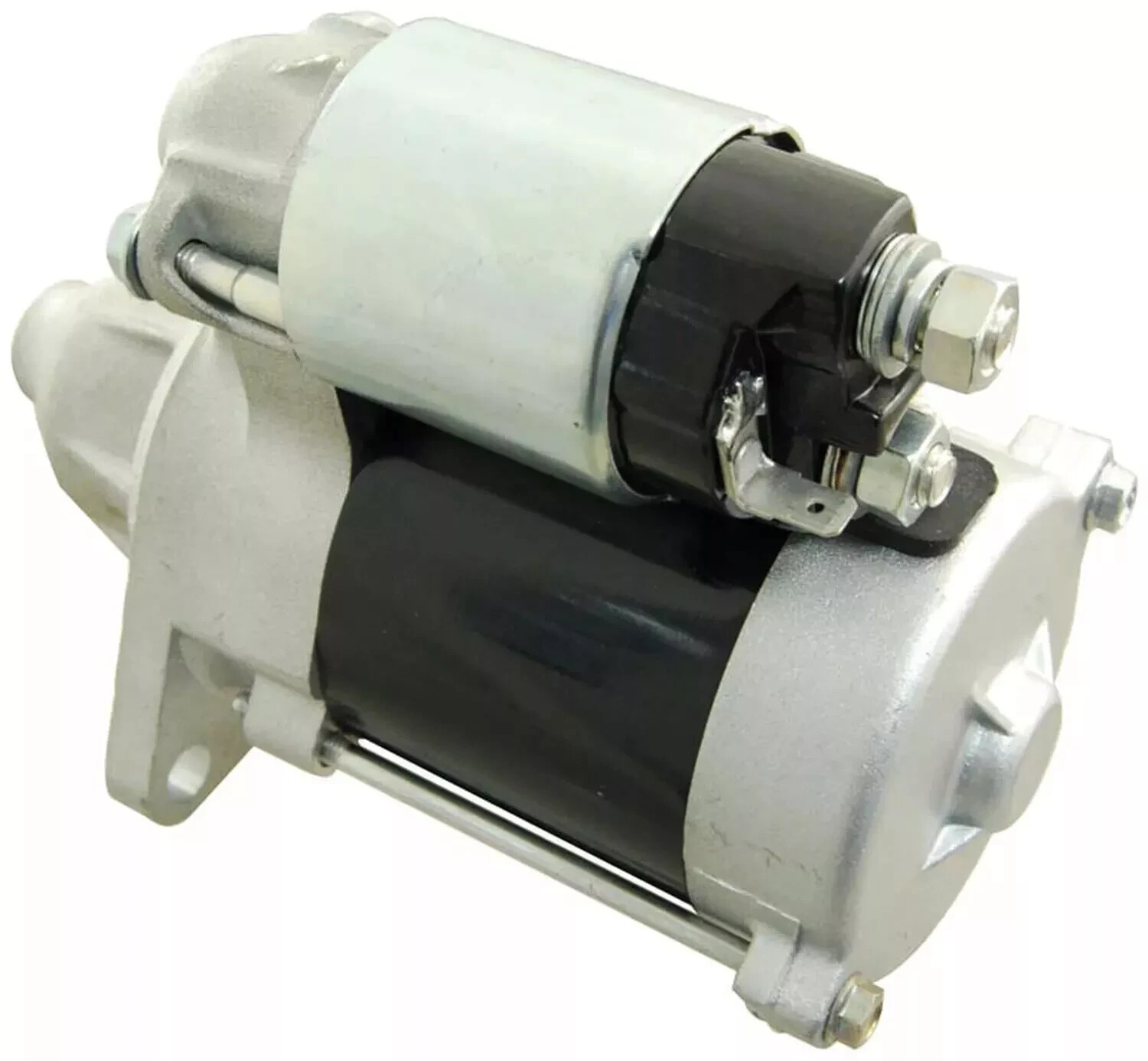

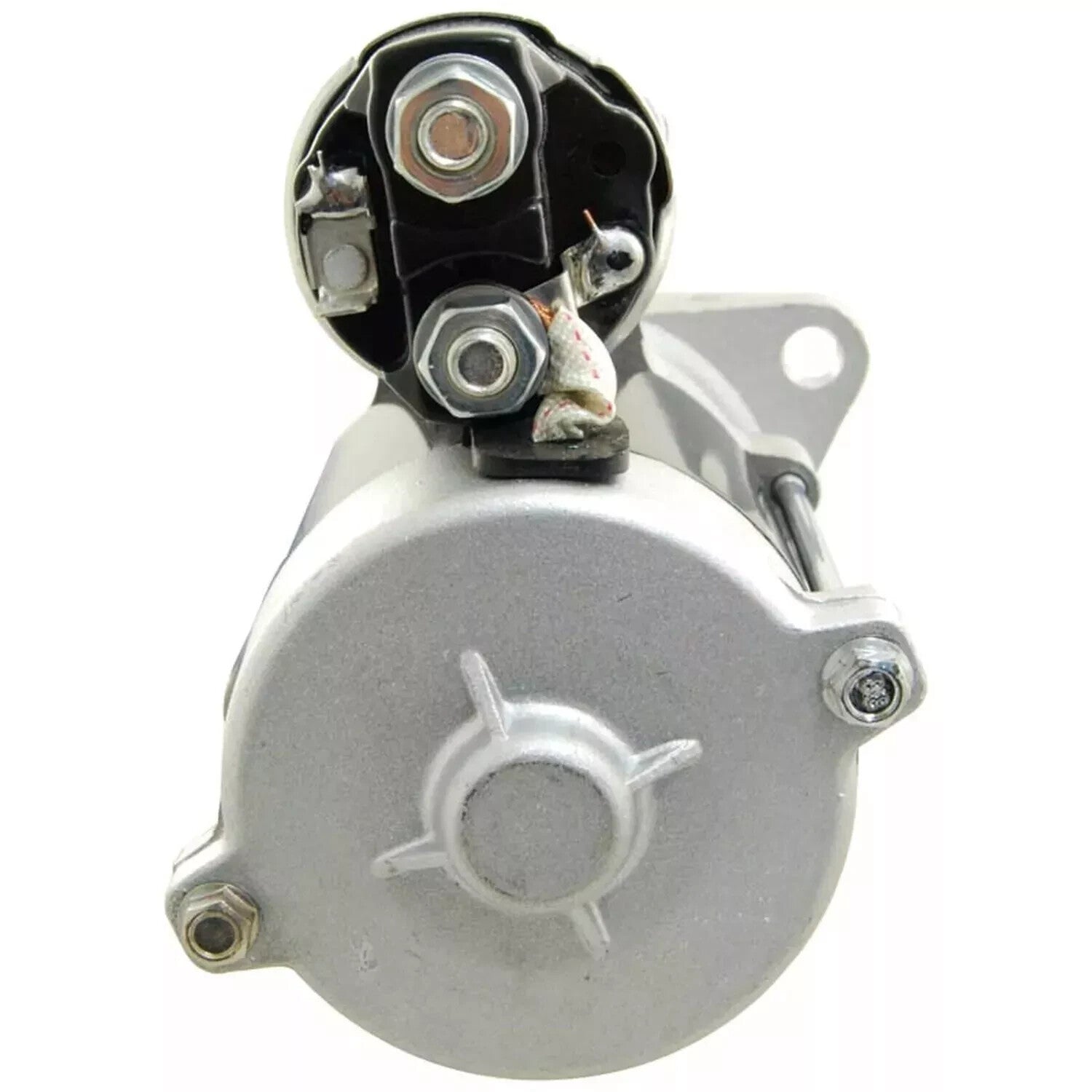

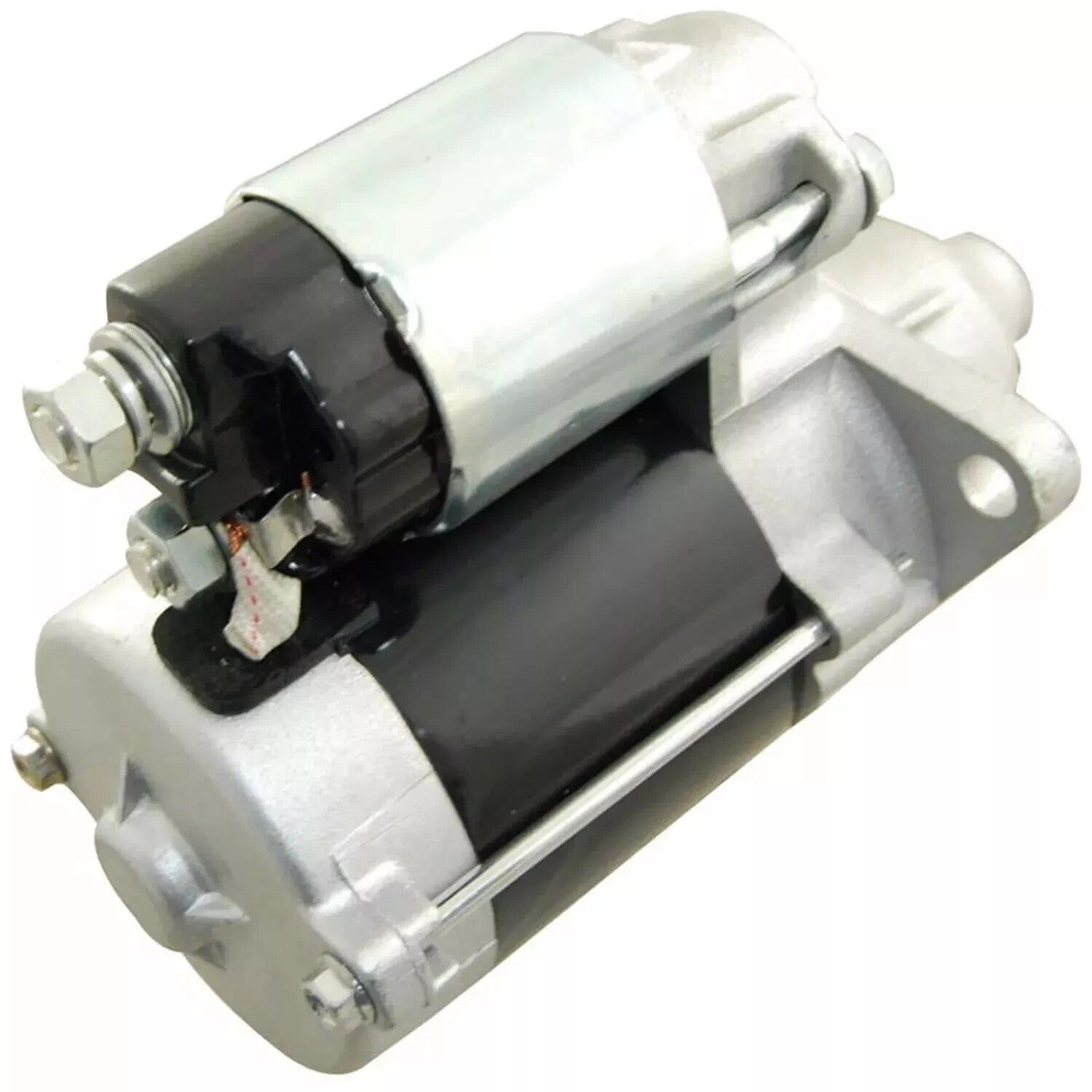

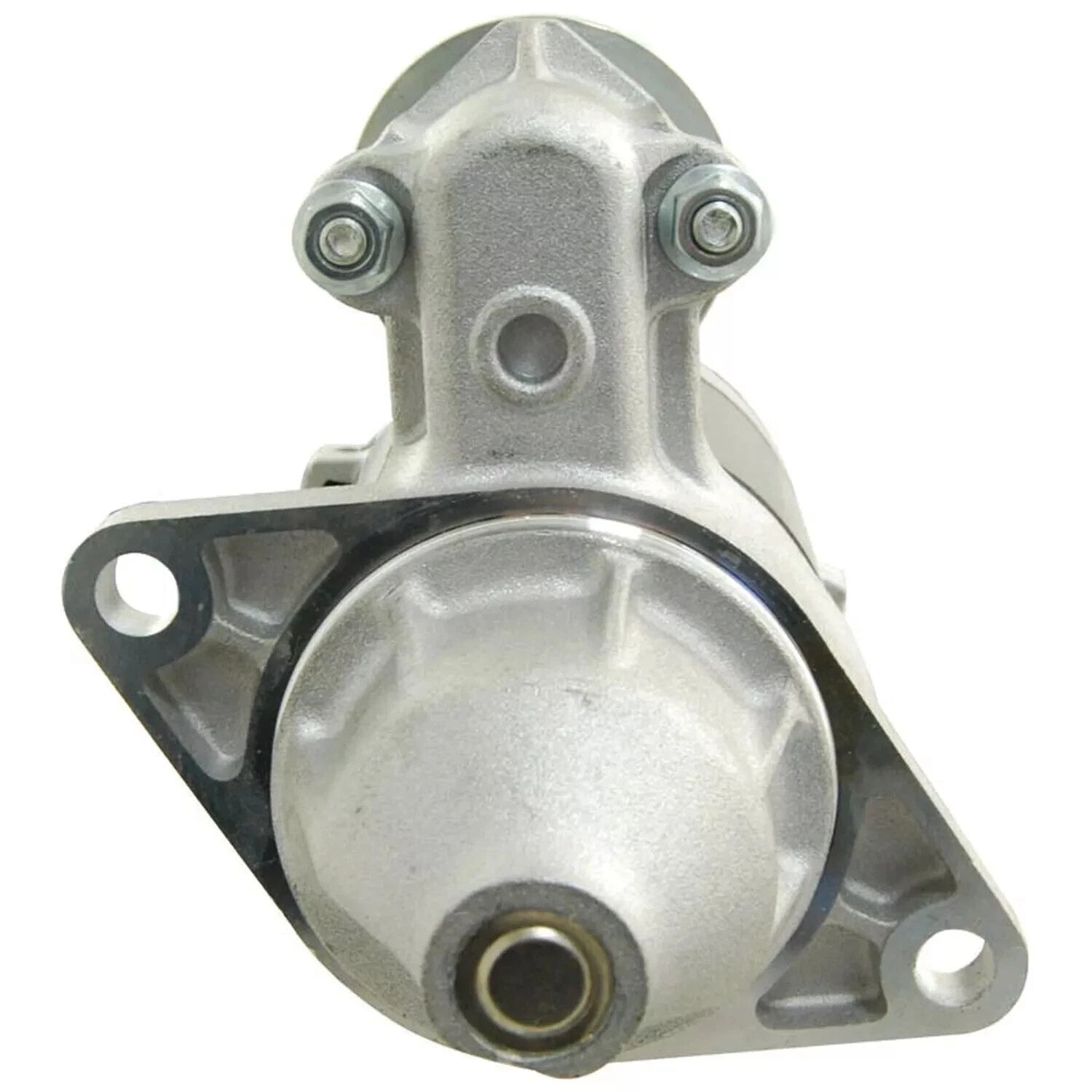

Starter For John Deere Gator Kawasaki FE250D FE290D FE350D FE400D GE 10HP

DESCRIPTION:

Specifications:

SPECIFICATIONS: 0.6kW/12 Volt, CCW, 9-Tooth Pinion
DESIGN: DD
VOLTAGE: 12
KW: 0.6
ROTATION: CCW
NUMBER OF TEETH: 9

Pinion/Splines OD: 29.1 mm / 1.146 in
Mounting Hole 1: 10.0mm ID Unthreaded
Mounting Hole 2: 10.0mm ID Unthreaded

INTERCHANGE #s:

Bombardier / Can-Am / Sea Doo: DAW26844

John Deere: AW26844

Kawasaki: 21163-2089

Denso: 128000-7050, 128000-7051

Lester: 18404

Arrowhead: SND0132

J & N Automotive: 410-52062

MES - Marine Electric Suppliers: ME3484-NA

MPA: 718404

MPA New: 199N

NAPA Pro Series: 718404N

Remy Small Motor: RS41272

Wilson HD New: 91-29-5366N

Wilson Heavy Duty: 91-29-5366

Dixie Electric: S-8897

Andre Niermann: 017050

Applications:

Make	Model	Year	Engine	Remarks
Bombardier	Sarasota 1000	04-05	L 249cc cid	Denso DD, 12v/ 9T
John Deere	AMT622 OEGPartsrter	88-90	All	Denso DD, 12v/ 9T
John Deere	AMT626 OEGPartsrter	90-92	All	Denso DD, 12v/ 9T
John Deere	Bunker & Field Rake 1200		All	Kawasaki 10HP Denso DD, 12v/ 9T
John Deere	Bunker & Field Rake 1200A		All	Kawasaki 10HP Denso DD, 12v/ 9T
John Deere	G5500KE Generator		All	Denso DD, 12v/ 9T
John Deere	Gator 4 x 2		All	Kawasaki 10HP Denso DD, 12v/ 9T
John Deere	Gator CS Compact Series		All	Kawasaki 8HP Denso DD, 12v/ 9T
John Deere	Gator CX Compact Series		All	Kawasaki 10HP Denso DD, 12v/ 9T
John Deere	Gator TS		All	Kawasaki 9.5HP Denso DD, 12v/ 9T
John Deere	Trail Gator 4 x 2		All	Kawasaki 10HP Denso DD, 12v/ 9T
Kawasaki	FE250D		All	Denso DD, 12v/ 9T,OE# 21163-2089
Kawasaki	FE290D		All	Denso DD, 12v/ 9T,OE# 21163-2089
Kawasaki	FE350D		All	Denso DD, 12v/ 9T,OE# 21163-2089
Kawasaki	FE400D		All	Denso DD, 12v/ 9T,OE# 21163-2089
Kawasaki	GE4000A		All	Denso DD, 12v/ 9T,OE# 21163-2089
Kawasaki	GE4500A		All	Denso DD, 12v/ 9T,OE# 21163-2089
Kawasaki	GE5000AS		All	Denso DD, 12v/ 9T,OE# 21163-2089
