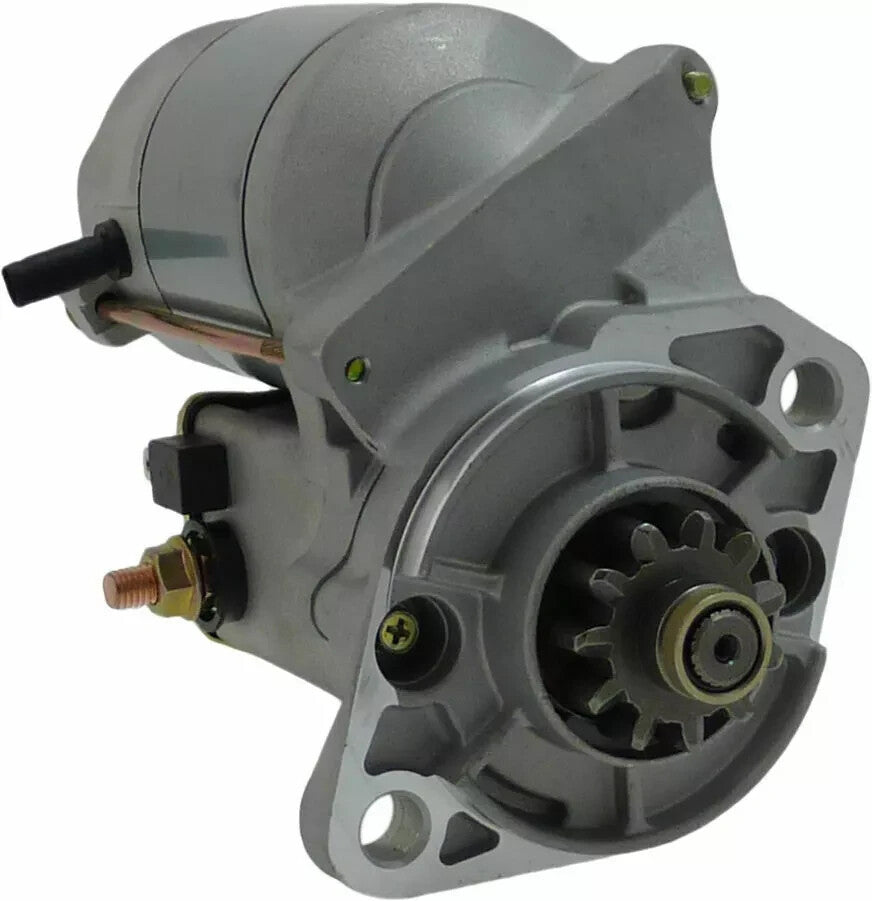

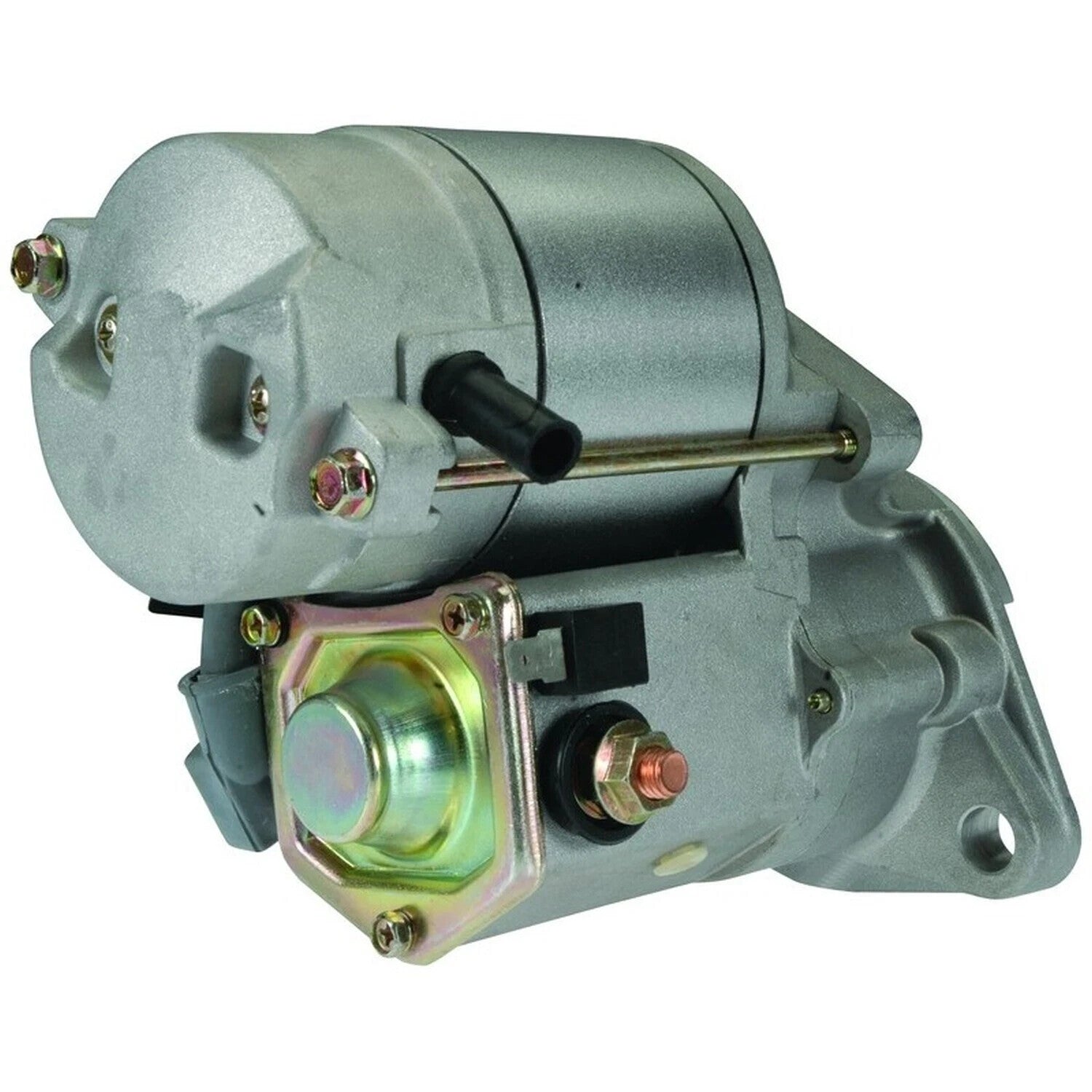

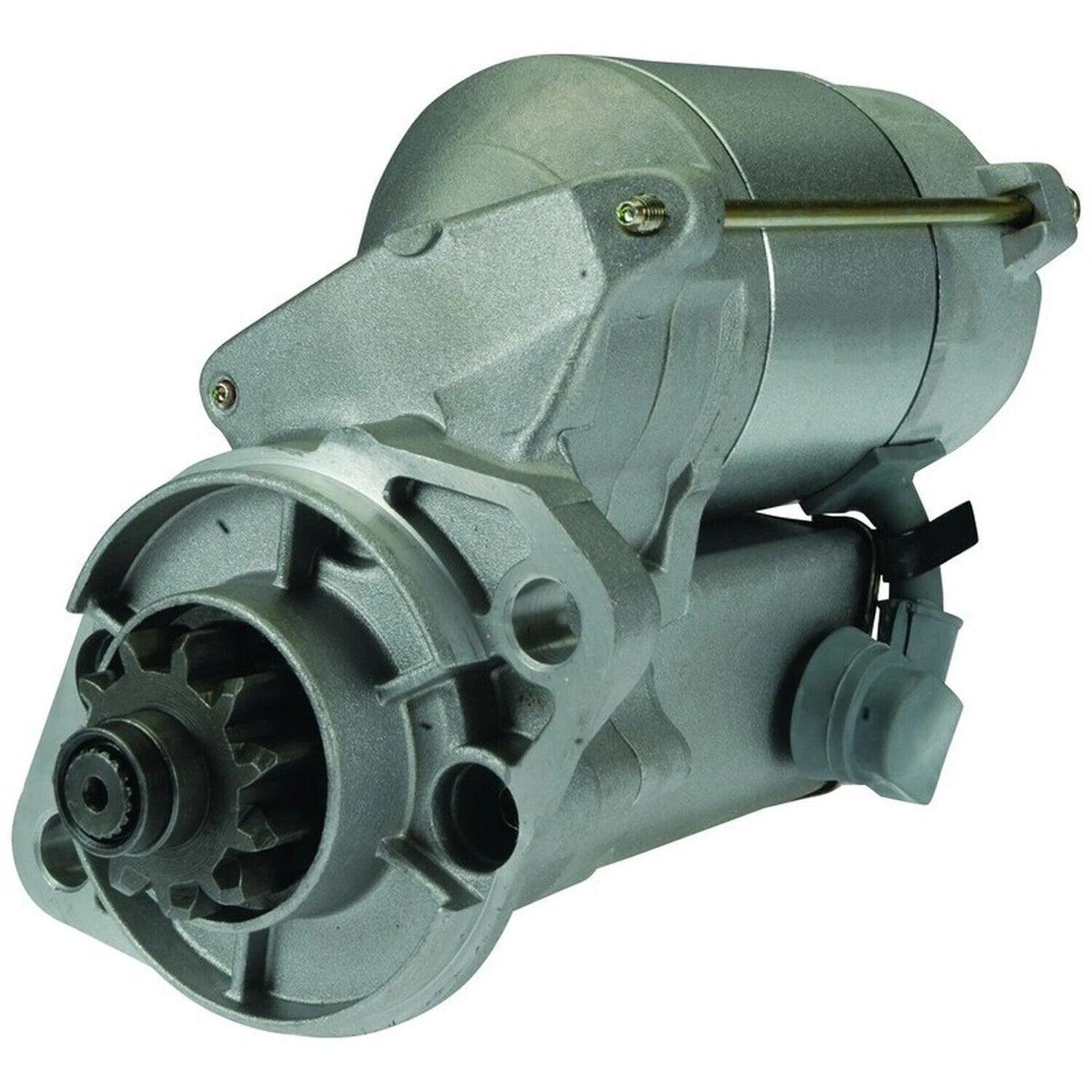

Starter fits Kubota Tractor M4900 M5700 M4700 M4050 M4030 15621-63015

Starter fits Kubota Tractor M4900 M5700 M4700 M4050 M4030 15621-63015

Regular price $109.89 USD
Regular price Sale price $109.89 USD
Sale Sold out
  • Same Day Shipping
  • Best Pricing Guaranteed
  • Fast & Free Shipping
View full details

DESCRIPTION:

We highly recommend for our customer to please check the compatible vehicles list and match the photos with your original part if possible to make sure it fits your vehicle,

Thank You!


DSS AUTO PARTS


There is an additional shipping fee if you live in any of the US Protectorates such as Puerto Rico, US Virgin Islands, US Minor Outlying Islands, Guam, American Samoa and Northern Mariana Islands.


Specification:

Voltage: 12
kW: 1.4
Rotation: CW
Tooth Count: 11

Interchanges:

Kubota: 15601-63012, 17381-63012, 17381-63013, 15621-63011, 15621-63012, 15621-63013, 15621-63014, 15621-63015
Denso: 028000-6250, 128000-1160, 128000-1161, 128000-0070, 128000-0071, 228000-1000, 228000-1001
Lester: 17115, 16946, 18142
Arrowhead: SND0274, SND0312
BBB HD: 16647, 16946, 18142
Carquest HD: 16647S, 16946S, 18142S
Remy Remanufactured: 69024
J & N Automotive: 410-52111, 410-52139, 410-52096
Denso Remanufactured: 9722809-107, 9722809-104, 9712809-007, 9722809-100
MES - Marine Electric Suppliers: 18142N
NAPA HD: 17115, 18142
NAPA New HD: 18142N
NAPA Pro Series: 17115, 18142
Remy Small Motor: RS41289
Tisco: 15621-63012
Wilson HD New: 91-29-5308N
Wilson Heavy Duty: 91-29-5119, 91-29-5303, 91-29-5308
API Marine: 17052
Dixie Electric: S-8197, S-8677
Lucas Electrical Europe: LRS01318, LRS01332
Andre Niermann: 016250, 011041

Application:

Make Model Year Engine Remarks
Kubota KC30 82-01 All Kubota S2200BS Diesel Denso OSGR, 12V/11T, 1.4kW
Kubota L305DT 79-82 All Kubota D1301DA 30HP Dsl Denso OSGR, 12V/11T, 1.4kW
Kubota L305F 79-82 All Kubota D1301DA 30HP Dsl Denso OSGR, 12V/11T, 1.4kW
Kubota L3350HDT 85-90 All Kubota V1902DIA 40HP Dsl Denso System
Kubota L3350MDT 85-90 All Kubota V1902DIA 40HP Dsl Denso System
Kubota L345DT 78-85 All Kubota V1501DA 34HP Dsl Denso OSGR, 12V/11T, 1.4kW
Kubota L345F 78-86 All Kubota V1501DA 34HP Dsl Denso OSGR, 12V/11T, 1.4kW
Kubota L345FW 1985 All Kubota V1501DA 34HP Dsl Denso OSGR, 12V/11T, 1.4kW
Kubota L355DTSS 82-87 All Kubota V1702A 36HP Dsl Denso OSGR, 12V/11T, 1.4kW
Kubota L355SS 82-87 All Kubota V1702A 36HP Dsl Denso OSGR, 12V/11T, 1.4kW
Kubota L3750HDT 84-90 All Kubota F2302DIL 45HP Dsl Denso System
Kubota L3750HF 84-90 All Kubota F2302DIL 45HP Dsl Denso System
Kubota L3750MDT 84-90 All Kubota F2302DIL 45HP Dsl Denso System
Kubota L3750MF 84-90 All Kubota F2302DIL 45HP Dsl Denso System
Kubota L4150DTN 88-90 All Kubota F2302DI 50HP Dsl Denso System
Kubota L4150F 90-92 All Kubota F2302DI 50HP Dsl Denso System
Kubota L4150HDT 84-90 All Kubota F2302DI 50HP Dsl Denso System
Kubota L4150HF 84-90 All Kubota F2302DI 50HP Dsl Denso System
Kubota L4150MDT 84-90 All Kubota F2302DI 50HP Dsl Denso System
Kubota L4150MF 84-90 All Kubota F2302DI 50HP Dsl Denso System
Kubota L4350DT 91-97 All Kubota V2203DI 47.5HP Dsl Denso System
Kubota L4350HDT 91-97 All Kubota V2203DI 47.5HP Dsl Denso System
Kubota L4350MDT 91-97 All Kubota V2203DI 47.5HP Dsl Denso System
Kubota L4850HDT 91-97 All Kubota F2503DI 53HP Dsl Denso System
Kubota L5450DT 91-97 All Kubota F2803DI 54.5HP Dsl Denso System
Kubota L5450HDT 91-97 All Kubota F2803DI 54.5HP Dsl Denso System
Kubota M4000 77-81 All Kubota S2200A 40HP Dsl Denso OSGR, 12V/11T, 1.4kW
Kubota M4030 86-89 All Kubota S2602DIA 51HP Dsl Denso OSGR, 12V/11T, 1.4kW
Kubota M4030DT 86-89 All Kubota S2602DIA 51HP Dsl Denso OSGR, 12V/11T, 1.4kW
Kubota M4030F 86-89 All Kubota S2602DIA 51HP Dsl Denso OSGR, 12V/11T, 1.4kW
Kubota M4030MDT 86-89 All Kubota S2602DIA 51HP Dsl Denso OSGR, 12V/11T, 1.4kW
Kubota M4030MF 86-89 All Kubota S2602DIA 51HP Dsl Denso OSGR, 12V/11T, 1.4kW
Kubota M4030SU 86-96 All Kubota S2602DIA 51HP Dsl Denso OSGR, 12V/11T, 1.4kW
Kubota M4030TF 86-89 All Kubota S2602DIA 51HP Dsl Denso OSGR, 12V/11T, 1.4kW
Kubota M4050 82-85 All Kubota S2600 48HP Dsl Denso OSGR, 12V/11T, 1.4kW
Kubota M4050DT 82-85 All Kubota S2600 48HP Dsl Denso OSGR, 12V/11T, 1.4kW
Kubota M4050F 82-85 All Kubota S2600 48HP Dsl Denso OSGR, 12V/11T, 1.4kW
Kubota M4050T 82-85 All Kubota S2600 48HP Dsl Denso OSGR, 12V/11T, 1.4kW
Kubota M4500DC 78-85 All Kubota S2600 55.5HP Dsl Denso OSGR, 12V/11T, 1.4kW
Kubota M4500DT 78-85 All Kubota S2600 55.5HP Dsl Denso OSGR, 12V/11T, 1.4kW
Kubota M4500F 79-84 All Kubota S2600 55.5HP Dsl Denso OSGR, 12V/11T, 1.4kW
Kubota M4700DT 95-97 All Kubota F2803ELA 51HP Dsl Denso OSGR, 12V/11T, 1.4kW
Kubota M4700F 95-97 All Kubota F2803ELA 51HP Dsl Denso OSGR, 12V/11T, 1.4kW
Kubota M4700S 96-98 All Kubota F2803ELA 51HP Dsl Denso OSGR, 12V/11T, 1.4kW
Kubota M4700SD 96-98 All Kubota F2803ELA 51HP Dsl Denso OSGR, 12V/11T, 1.4kW
Kubota M4800SU 02-09 All Kubota V2403MEA 50HP Dsl Denso OSGR, 12V/11T, 1.4kW
Kubota M4800SUD 02-09 All Kubota V2403MEA 50HP Dsl Denso OSGR, 12V/11T, 1.4kW
Kubota M4900 01-06 All Kubota F2803 49.5HP Dsl Denso OSGR, 12V/11T, 1.4kW
Kubota M4900C 01-06 All Kubota F2803 49.5HP Dsl Denso OSGR, 12V/11T, 1.4kW
Kubota M4900DT 01-06 All Kubota F2803 49.5HP Dsl Denso OSGR, 12V/11T, 1.4kW
Kubota M4900DTC 01-06 All Kubota F2803 49.5HP Dsl Denso OSGR, 12V/11T, 1.4kW
Kubota M4900F 01-06 All Kubota F2803 49.5HP Dsl Denso OSGR, 12V/11T, 1.4kW
Kubota M4900SC 01-06 All Kubota F2803 49.5HP Dsl Denso OSGR, 12V/11T, 1.4kW
Kubota M4900SCS-F 01-06 All Kubota F2803 49.5HP Dsl Denso OSGR, 12V/11T, 1.4kW
Kubota M4900SD-F 01-06 All Kubota F2803 49.5HP Dsl Denso OSGR, 12V/11T, 1.4kW
Kubota M4900SDC 01-06 All Kubota F2803 49.5HP Dsl Denso OSGR, 12V/11T, 1.4kW
Kubota M4900SU-F 01-06 All Kubota F2803 49.5HP Dsl Denso OSGR, 12V/11T, 1.4kW
Kubota M4900SU-R 01-06 All Kubota F2803 49.5HP Dsl Denso OSGR, 12V/11T, 1.4kW
Kubota M4900SUD-F 01-06 All Kubota F2803 49.5HP Dsl Denso OSGR, 12V/11T, 1.4kW
Kubota M4900SUD-R 01-06 All Kubota F2803 49.5HP Dsl Denso OSGR, 12V/11T, 1.4kW
Kubota M4950DT 83-93 All Kubota S2800A 55HP Dsl Denso OSGR, 12V/11T, 1.4kW
Kubota M4950DTC 83-85 All Kubota S2800A 55HP Dsl Denso OSGR, 12V/11T, 1.4kW
Kubota M4950F 83-93 All Kubota S2800A 55HP Dsl Denso OSGR, 12V/11T, 1.4kW
Kubota M4950FC 83-85 All Kubota S2800A 55HP Dsl Denso OSGR, 12V/11T, 1.4kW
Kubota M4950S 83-93 All Kubota S2800A 55HP Dsl Denso OSGR, 12V/11T, 1.4kW
Kubota M5030DT 86-89 All Kubota S2800A 60HP Dsl Denso OSGR, 12V/11T, 1.4kW
Kubota M5030DTL 86-89 All Kubota S2800A 60HP Dsl Denso OSGR, 12V/11T, 1.4kW
Kubota M5030F 86-89 All Kubota S2800A 60HP Dsl Denso OSGR, 12V/11T, 1.4kW
Kubota M5030L 86-89 All Kubota S2800A 60HP Dsl Denso OSGR, 12V/11T, 1.4kW
Kubota M5030MDT 86-89 All Kubota S2800A 60HP Dsl Denso OSGR, 12V/11T, 1.4kW
Kubota M5030MDTL 86-89 All Kubota S2800A 60HP Dsl Denso OSGR, 12V/11T, 1.4kW
Kubota M5030MF 86-89 All Kubota S2800A 60HP Dsl Denso OSGR, 12V/11T, 1.4kW
Kubota M5030SU 90-96 All Kubota S2800A 60HP Dsl Denso OSGR, 12V/11T, 1.4kW
Kubota M5030SUDT 90-96 All Kubota S2800A 60HP Dsl Denso OSGR, 12V/11T, 1.4kW
Kubota M5030SUMDT 90-96 All Kubota S2800A 60HP Dsl Denso OSGR, 12V/11T, 1.4kW
Kubota M5400DT 95-97 All Kubota F2803A 58HP Dsl Denso OSGR, 12V/11T, 1.4kW
Kubota M5400DT-N 95-97 All Kubota F2803A 58HP Dsl Denso OSGR, 12V/11T, 1.4kW
Kubota M5400F 95-97 All Kubota F2803A 58HP Dsl Denso OSGR, 12V/11T, 1.4kW
Kubota M5400S 95-97 All Kubota F2803A 58HP Dsl Denso OSGR, 12V/11T, 1.4kW
Kubota M5400SD 95-97 All Kubota F2803A 58HP Dsl Denso OSGR, 12V/11T, 1.4kW
Kubota M5700 01-06 All Kubota F2803-EA 57HP Dsl Denso OSGR, 12V/11T, 1.4kW
Kubota M5700C 01-06 All Kubota F2803-EA 57HP Dsl Denso OSGR, 12V/11T, 1.4kW
Kubota M5700DT 01-06 All Kubota F2803-EA 57HP Dsl Denso OSGR, 12V/11T, 1.4kW
Kubota M5700DT-N 01-06 All Kubota F2803-EA 57HP Dsl Denso OSGR, 12V/11T, 1.4kW
Kubota M5700DTC 01-06 All Kubota F2803-EA 57HP Dsl Denso OSGR, 12V/11T, 1.4kW
Kubota M5700HD-F 01-06 All Kubota F2803-EA 57HP Dsl Denso OSGR, 12V/11T, 1.4kW
Kubota M5700HDC 01-06 All Kubota F2803-EA 57HP Dsl Denso OSGR, 12V/11T, 1.4kW
Kubota M5700S-F 01-06 All Kubota F2803-EA 57HP Dsl Denso OSGR, 12V/11T, 1.4kW
Kubota M5700SC 01-06 All Kubota F2803-EA 57HP Dsl Denso OSGR, 12V/11T, 1.4kW
Kubota M5700SD-F 01-06 All Kubota F2803-EA 57HP Dsl Denso OSGR, 12V/11T, 1.4kW
Kubota M5700SDC 01-06 All Kubota F2803-EA 57HP Dsl Denso OSGR, 12V/11T, 1.4kW
Kubota M5700SDN-F 01-06 All Kubota F2803-EA 57HP Dsl Denso OSGR, 12V/11T, 1.4kW
Kubota SQ1140 All Kubota D1703 Dsl Denso System
Kubota SQ1200 All Kubota V2203 Dsl Denso System
Kubota SQ3170 All Kubota D1703 Dsl Denso System
Kubota SQ3250SW All Kubota V2203 Dsl Denso System
Kubota Various All (83-On) F2302 Engine Denso System
Thomas Equipment T233 89-97 All Kubota S2800B Diesel Denso OSGR, 12V/11T, 1.4kW
